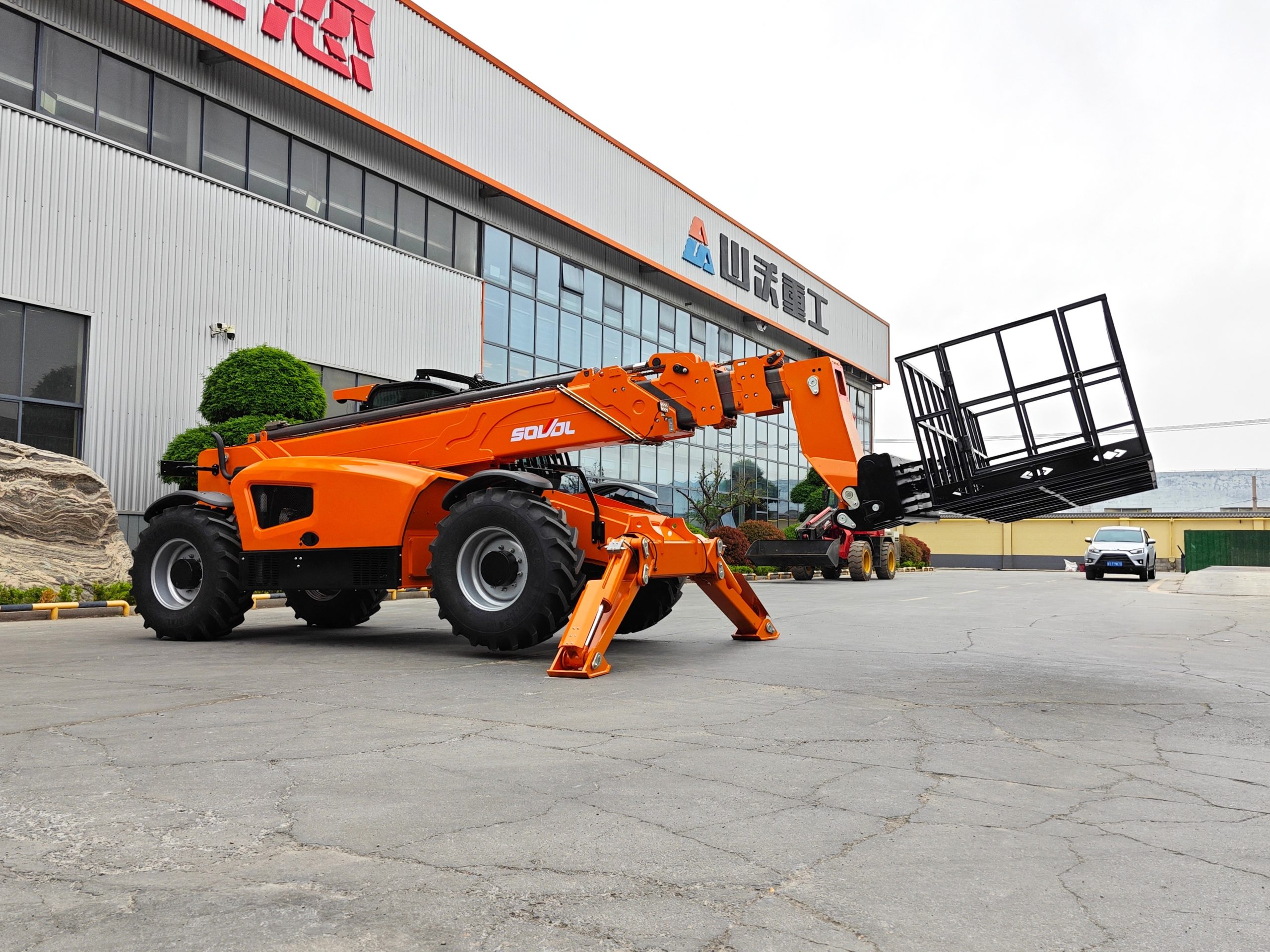

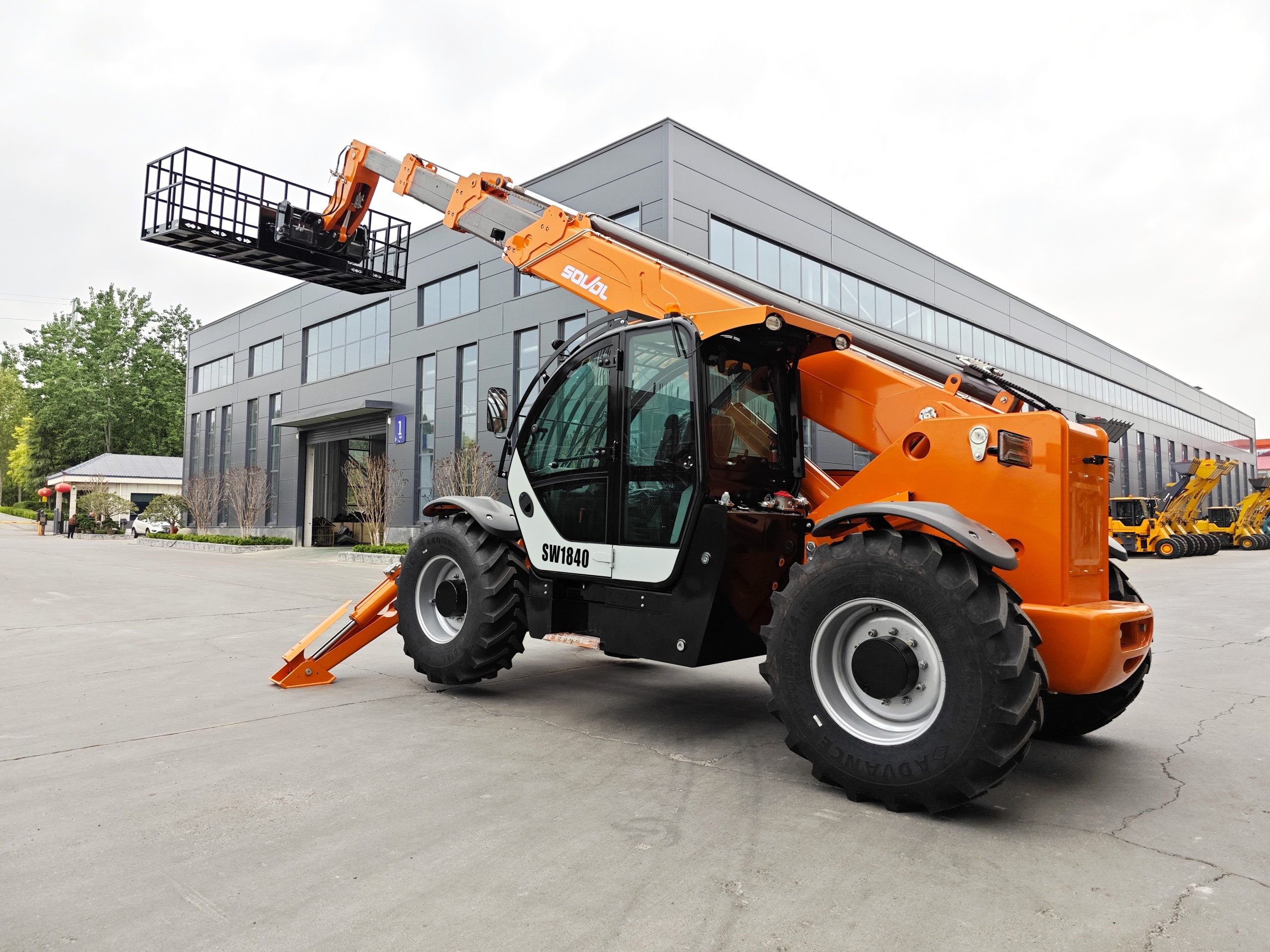

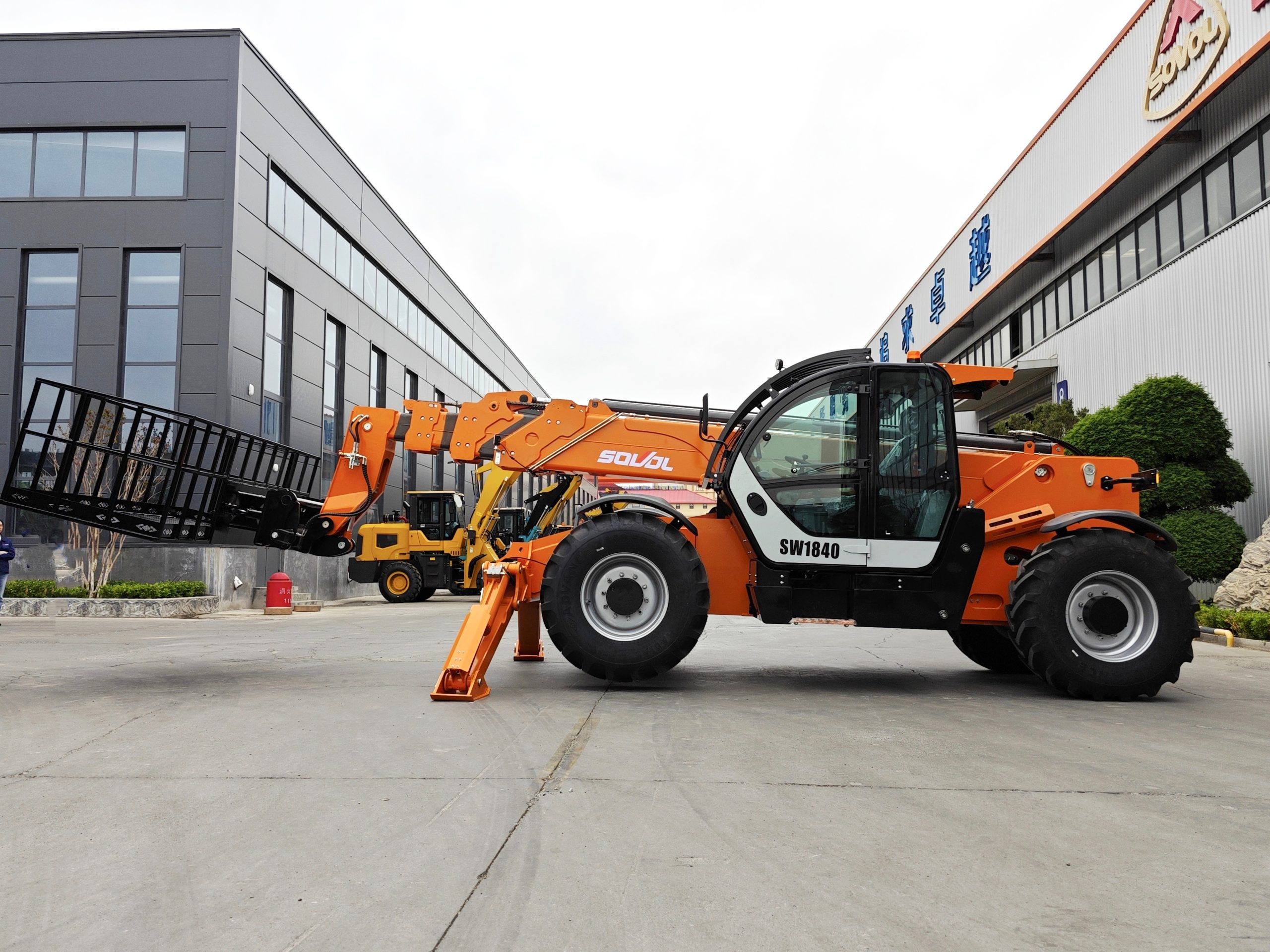

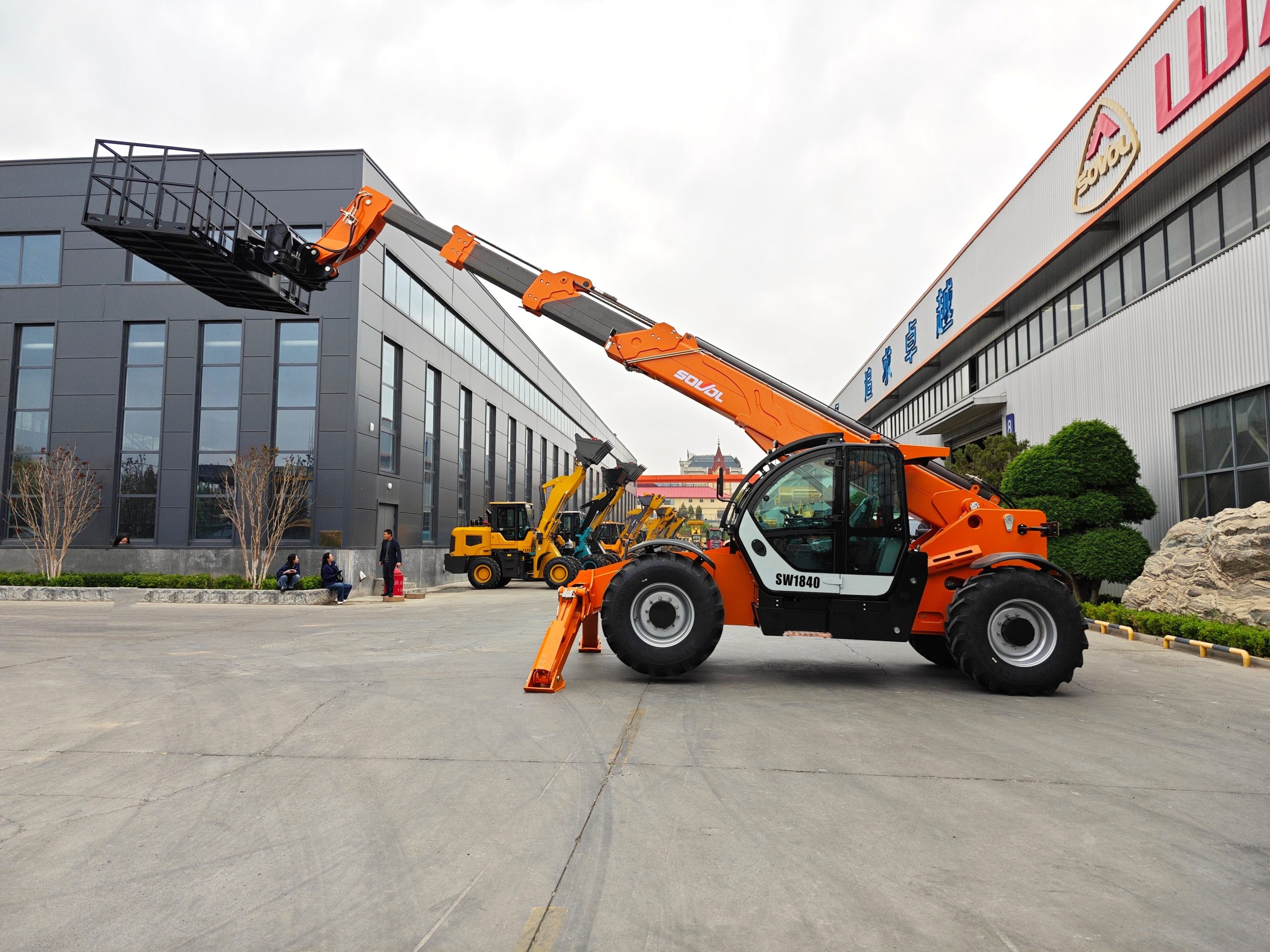

SW1840 18m 4 Ton High Reach Telehandler
As one of the largest telehandler models, the SW1840 is designed for contractors, rental companies, industrial users and project customers looking for a high-reach heavy-duty telehandler.
With a maximum lifting height of 18 meters, 4000kg rated load capacity and outrigger support, this model provides extended working reach and improved stability.
Key Features
18m High Reach Lifting Capability
The SW1840 provides a maximum lifting height of 18 meters, making it suitable for high-rise & high-position loading tasks.
4 Ton Rated Load Capacity
With a 4000kg rated load capacity, this model can handle heavy pallets, construction materials, steel components, concrete blocks, and industrial loads.
Outriggers for Enhanced Stability
The equipment equips hydraulic outriggers to improve working stability during high-reach lifting operations.
Heavy-duty Rough Terrain Performance
Designed for outdoor and uneven job site conditions, the SW1840 offers reliable rough terrain performance.
High-end Model for Professional Users
The SW1840 is positioned as a high-reach heavy-duty telehandler for professional users who require greater lifting height, stronger stability, and broader job site capability than standard models.
Optional Attachments
Specifications
| Item | Specification |
|---|---|
| Model | SW1840 |
| Rated Load Capacity | 4000 kg |
| Maximum Lifting Height | 17600 mm |
| Drive Type | 4WD |
| Steering Mode | 2-wheel, 4-wheel, Crab |
| Engine | Yuchai/Weichai/ Cummins/ Perkins/ Kubota; Euro 2~Euro 5 |
| Transmission | Fully electronically controlled |
| Axle | Dry type, heavy-duty |
| Tires | 440/80 R-24, tubeless tires |
| Fuel Tank | 150L |
| Hydraulic Oil Tank | 170L |
| Overall Dimension | 7750*2300*2500mm |
Packaging & Shipping
Packaging
- Machine cleaning before shipment
- Standard export protection
- Attachments packed according to order configuration
Shipping
- Container shipment available
- Whole export documents can be provided for overseas customers and dealers
- Customized delivery arrangement for dealers/distributors/traders
Frenquently Asked Questions
Does the SW1840 have outriggers?
Yes. The SW1840 is equipped with two hydraulic outriggers to improve stability during high-reach and heavy-duty lifting operations.
what's the engine brand of this telehandler?
The standard engine is Cummins, 93kW model. Other engine brands are optional.
How about the safety of the telehandler?
We place great emphasis on the safety of use and operation. The machine is equipped with an anti-rollover cab and two sets of control logic for loading personnel and cargo.
What attachments are available for the SW1840?
Common attachments are all available.
How long of the guarantee of the telehandler?
One year from the date you receive the machine.
