SW938 1.5 Ton Wheel Loader
A practical mid-light loading machine equipped with a Yunnei YN4102 turbo engine, 1,500 kg rated load, 3500 mm dumping height and 0.7–1.2 m³ bucket capacity.

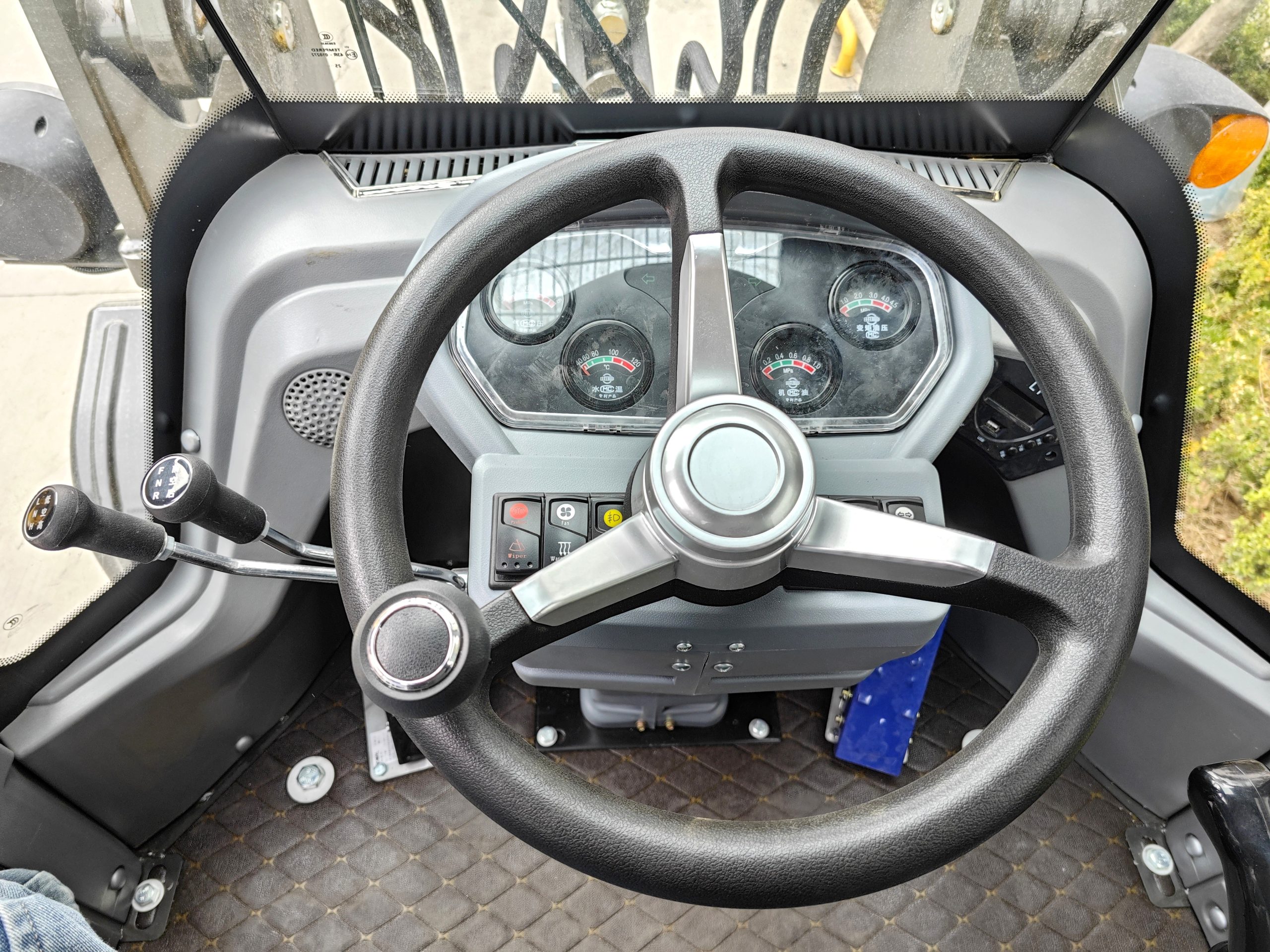

With its reliable drivetrain, comfortable cab, flexible steering and practical maintenance design, the SW938 is suitable for construction sites, farms, sand and gravel yards, warehouse areas and general material handling operations.
Key Features
1.5 Ton Loading Capacity for Daily Heavy Work
The SW938 offers a 1,500 kg rated load, making it stronger than small compact loaders while still keeping good maneuverability. It is suitable for loading soil, gravel, sand, feed, fertilizer, construction materials, and other bulk materials in daily working environments.
3500 mm Dumping Height for Flexible Loading
With a 3500 mm dumping height, the SW938 can load trucks, trailers, hoppers, and material piles more easily. This feature is especially useful when frequently load materials into transport vehicles.
76 kW Turbo Engine for Stronger Power Output
The SW938 is powered by a Yunnei YN4102 turbo engine with 76 kW power output. The turbo engine helps improve working efficiency when handling heavier materials or operating for long hours.
Reliable Split-Type Transmission
265 split-type transmission supports more stable power delivery and easier maintenance.
Flexible Steering and Easy Operation
the high-quality steering system is designed for flexible and effortless operation, helping match different market preferences and operator habits
Specifications
| Item | Specification |
|---|---|
| Model | SW938 |
| Rated Load Capacity | 1500 kg |
| Bucket capacity | 0.7-1.2m³ |
| Operating weight | 5150 kg |
| Dumping Height | 3500 mm |
| Engine | Yunnei YN4102(turbo) , 76KW, 4 cylinders. Euro 2~Euro 5 (Yuchai,Quanchai, Cummins, Weichai, Perkins, FPT, Kubota, Yanmar are optional) |
| Transmission Box | 265 split type. Front 4,Rear 4 |
| Axle | Final reduce, middle-hub |
| Tires | 16/70-20 |
| Overall Dimension | 6220*2135*2830mm |
Attachments & Custom Options
| Attachment | Application |
|---|---|
| Standard Bucket | Soil, sand, gravel and general material loading |
| Enlarged Bucket | Light materials such as grain, sawdust or loose bulk materials |
| Pallet Fork | Pallet handling, warehouse yards and factory use |
| Grass Fork | Farm work, grass handling and agricultural materials |
| Log Grapple | Timber, branches and irregular material handling |
| Snow Blade | Road maintenance and snow clearing |
| Quick Hitch | Faster attachment change for different tasks |
Available options may include:
- Air conditioner
- Hydraulic pilot control
- Different tire options
- Cabin configuration options
- Bucket size customization
- Color and logo customization
- Attachment matching support
- Spare parts package according to customer requirements
Frenquently Asked Questions
What are the main appliacations of the wheel loaders?
Construction Sites, Agriculture and Farm Work, Sand and Gravel Loading, Warehouse Yards and Industrial Material Handling, General Loading Work
What's the operation type of the SW938 wheel laoder?
The standard operation type is mechanical pilot, but the hydraulic pilot can be applied.
What's the tire model?
It’s 16/70-20 tubeless tire. Other models and types are optional.
Can SOVOL customize the wheel loader for my market?
Yes. We provide customization options
Inquiry Section
Contact SOVOL today to get the latest price, full specifications and attachment recommendations for the SW938 1.5 ton wheel loader.
