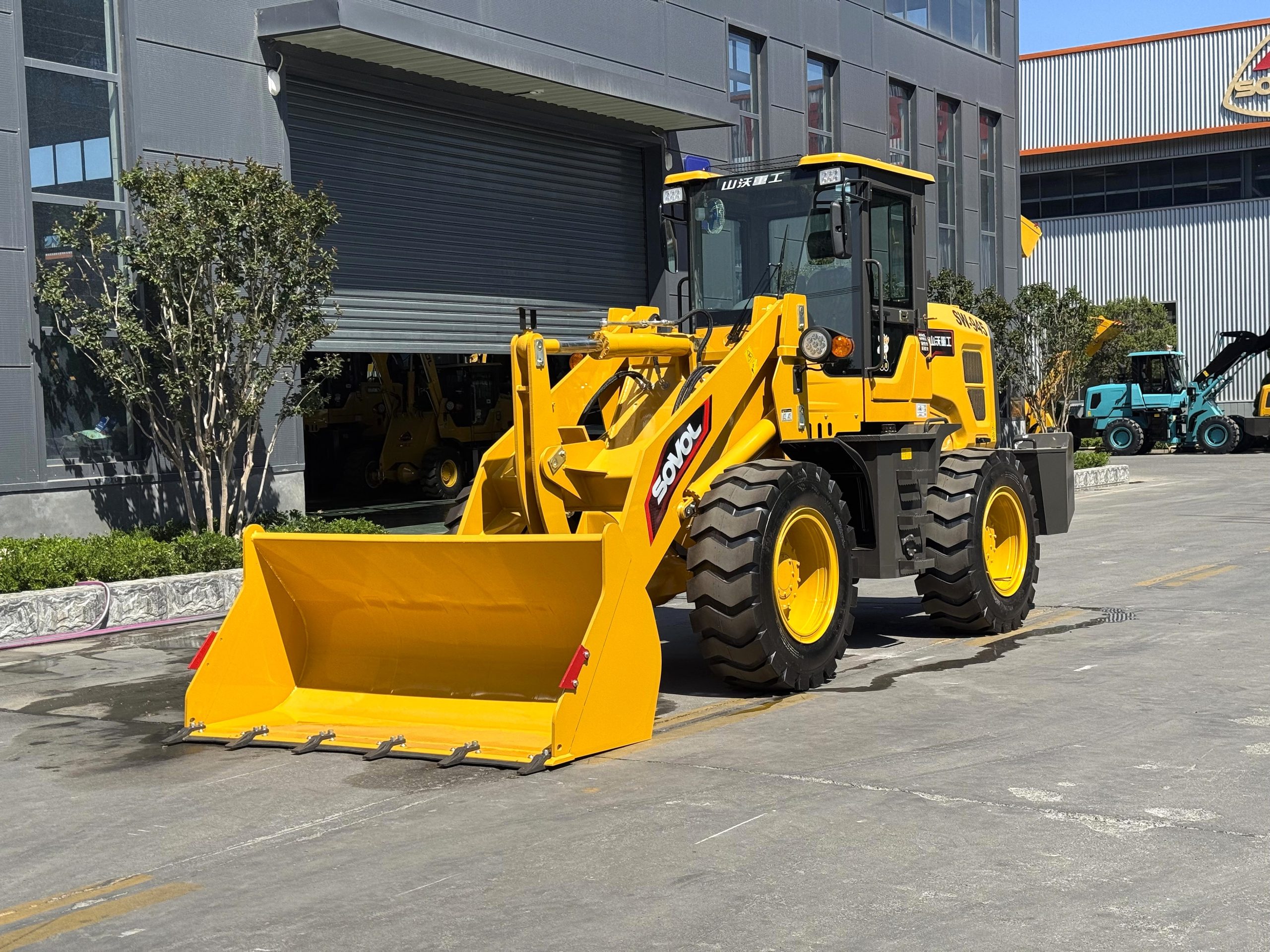

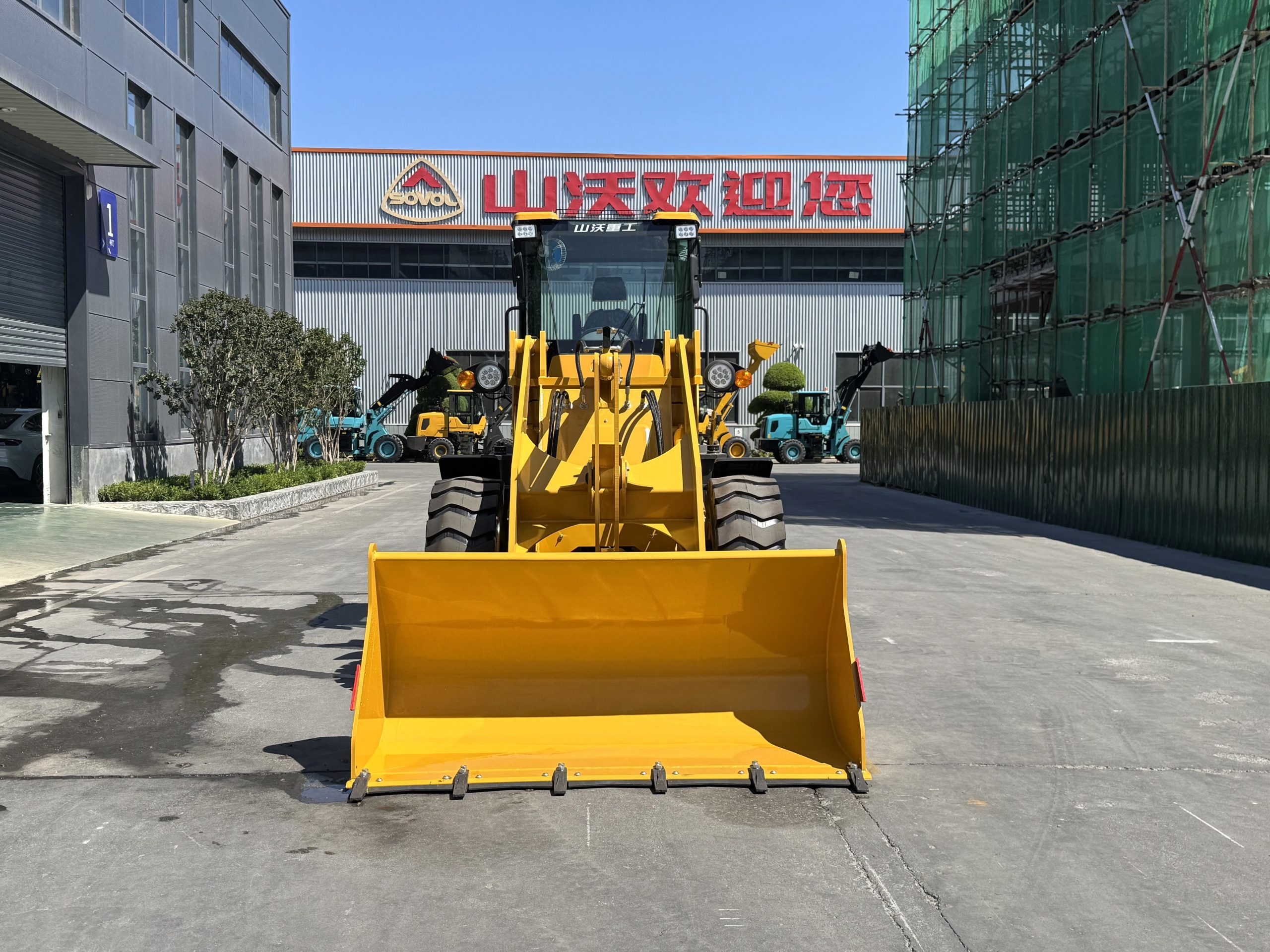

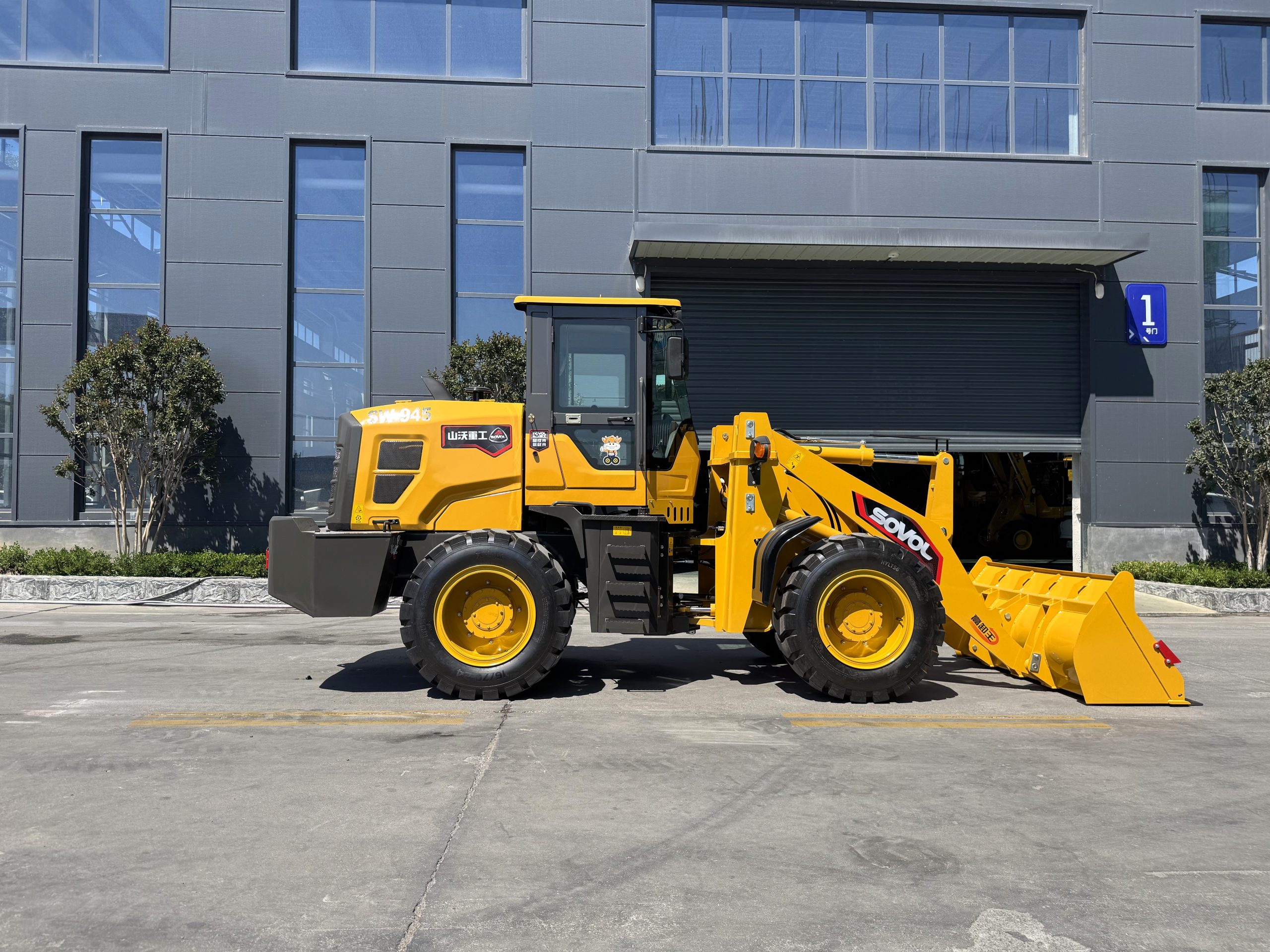

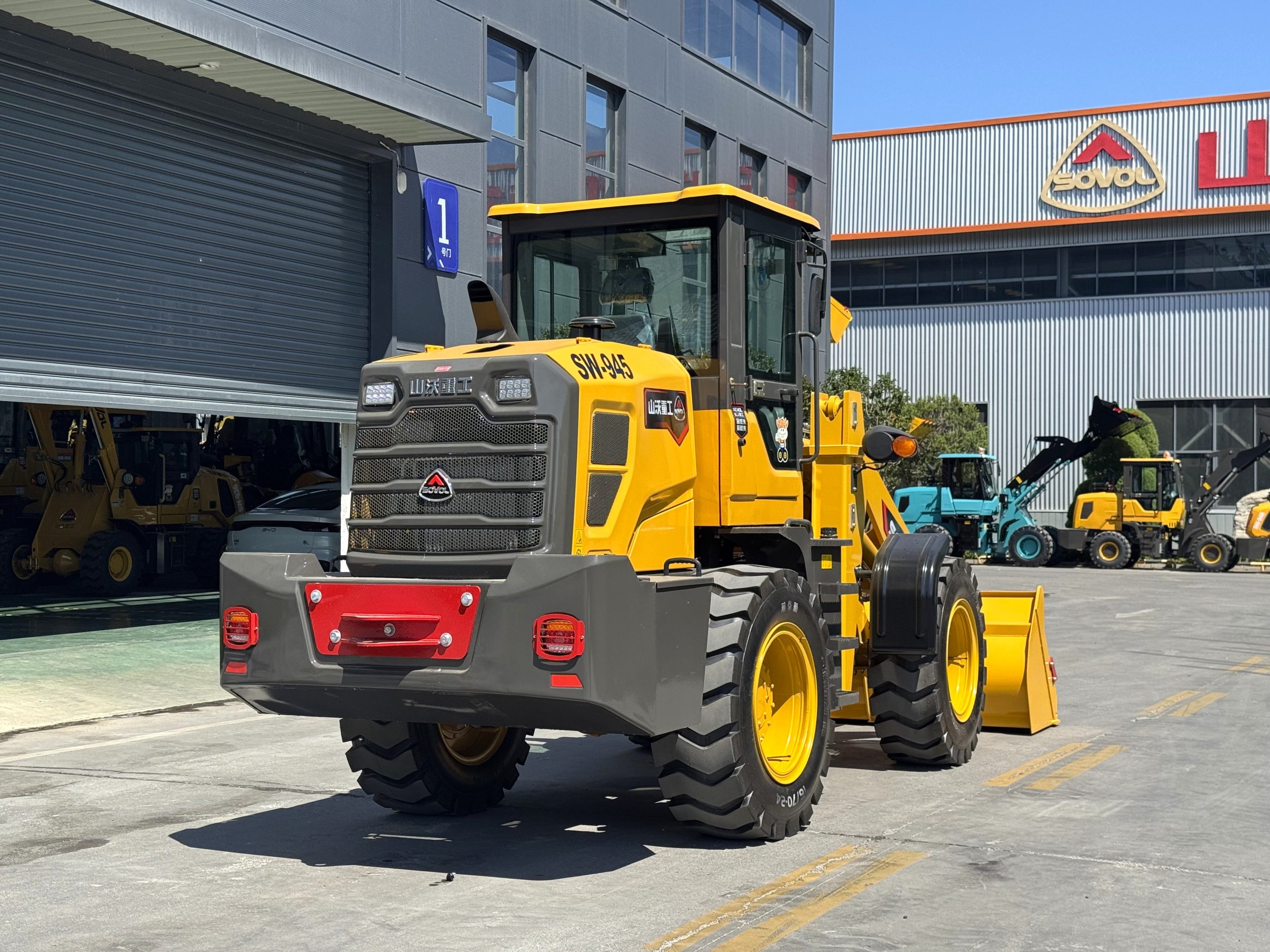

SW945 2 Ton Wheel Loader
The SW945 wheel loader is a practical choice for construction sites, farms, road work, bulk material loading and light mining support.
It has a 2,000 kg rated load, Yunnei YN4108 turbo engine, 92 kW power output, 3600 mm dumping height and 1–1.2 m³ bucket capacity. Higher operating weight and stronger drivetrain configuration.
Key Features

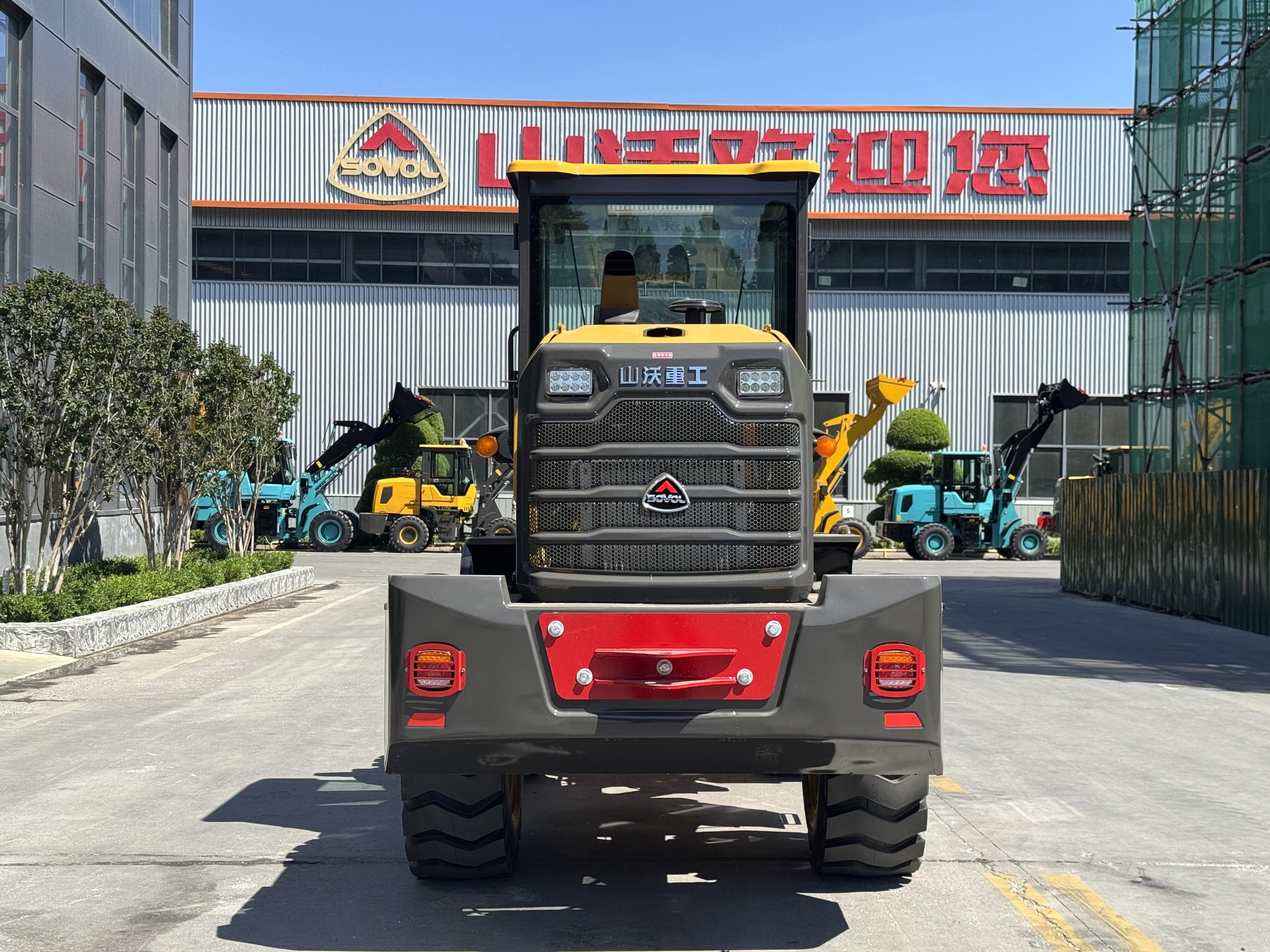

92 kW Turbo Engine for Strong Power Output
Yunnei YN4108 turbo engine with 92 kW power output provides strong power for loading, pushing, climbing, and continuous working conditions.
280 Split-Type Transmission
The 280 split-type transmission is designed to support stable power delivery and practical maintenance.
Big-Hub Axle for Heavy-Duty Performance
The SW945 is equipped with a final reduction big-hub axle, which is useful for heavier working conditions and drivetrain reliability.
Practical Protection and Maintenance Design
Many details for daily operation and maintenance, such as lockable fuel and hydraulic oil tanks, protective headlight netting, shock-absorbing engine mounts, and accessible service areas.
Specifications
| Item | Specification |
|---|---|
| Model | SW945 |
| Rated Load Capacity | 2000 kg |
| Bucket capacity | 1-1.2m³ |
| Operating weight | 6220 kg |
| Dumping Height | 3600 mm |
| Engine | Yunnei YN4108(turbo) , 92KW, 4 cylinders. Euro 2~Euro 5 (Yuchai,Quanchai, Cummins, Weichai, Perkins, FPT, Kubota, Yanmar are optional) |
| Transmission Box | 280 split type. Front 4,Rear 4 |
| Axle | Final reduce, big-hub |
| Tires | 16/70-24 |
| Overall Dimension | 7000*2235*2970mm |
Attachments & Custom Options
| Attachment | Application |
|---|---|
| Standard Bucket | General loading of soil, sand, gravel, and other construction materials |
| Enlarged Bucket | Light bulk materials such as grain, feed, sawdust, or fertilizer |
| Pallet Fork | Pallet handling, warehouse yards, and industrial material transfer |
| Grass Fork | Farm use, grass handling, and agricultural material loading |
| Log Grapple | Timber, branches, and irregular material handling |
| Snow Blade | Road maintenance and snow clearing |
| Quick Hitch | Faster attachment change for multi-purpose operation |
| Rock Bucket | Sand, gravel, stone, and tougher material loading conditions |
Available options may include:
- Air conditioner
- Hydraulic pilot control
- Different tire options
- Bucket size customization
- Cabin configuration options
- Color and logo customization
- Attachment matching support
- Spare parts packages
- Configuration adjustment for different market needs
Frenquently Asked Questions
What are the main appliacations of the wheel loaders?
Construction Sites, Agriculture and Heavy Farm Work, Road Work and Municipal Maintenance,Bulk Material Loading, Mining and Quarry Support
Can the bucket capacity be customized?
Yes. The bucket sizes and models can be manufactured as per your required
What's the tire model?
It’s 16/70-24 tubeless tire. Other models and types are optional.
How can I get the price and full specifications?
You can contact SOVOL with your target market, application scenarios, required parameters, and order quantity.We will provide you with the latest quotation to your country soon.
Inquiry Section
Contact SOVOL today to get the latest price, full specifications and attachment recommendations for the SW945 2 ton wheel loader.
